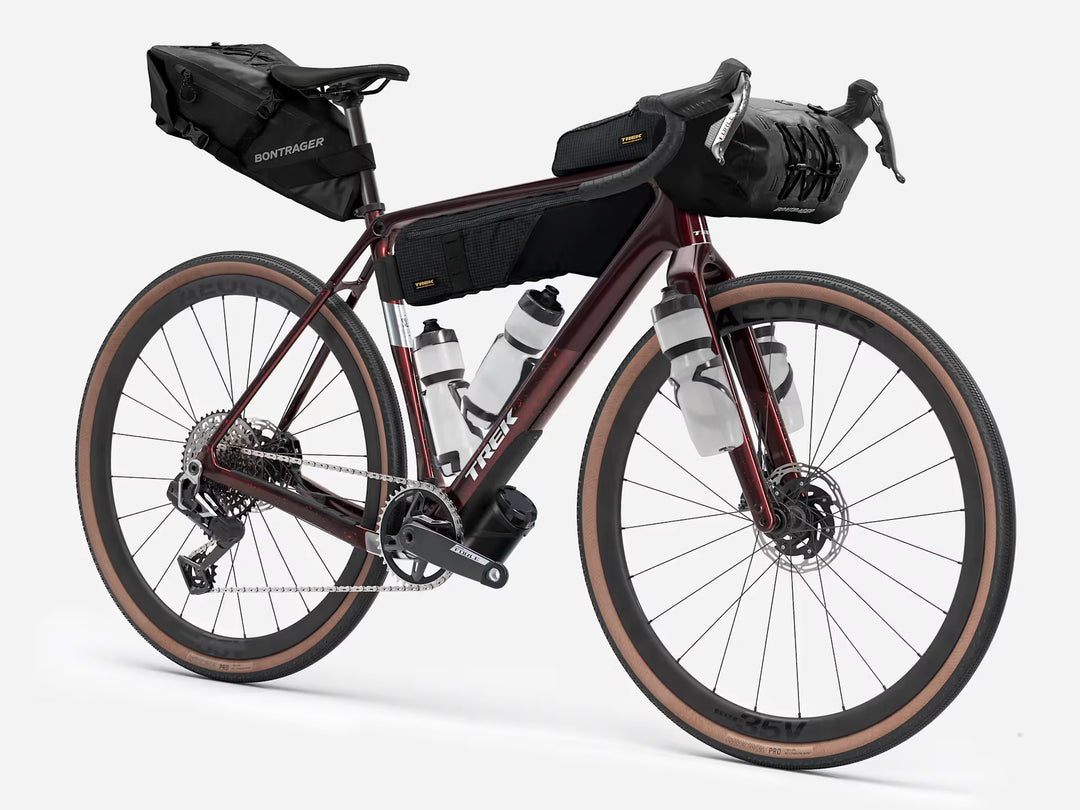

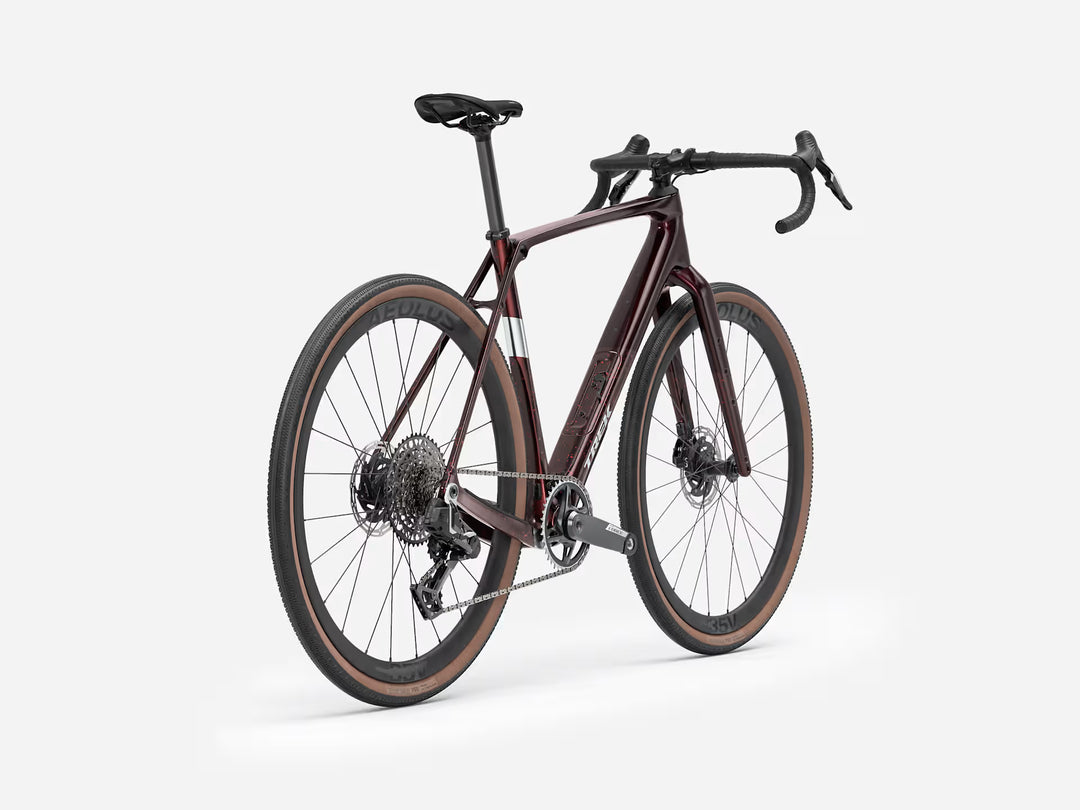

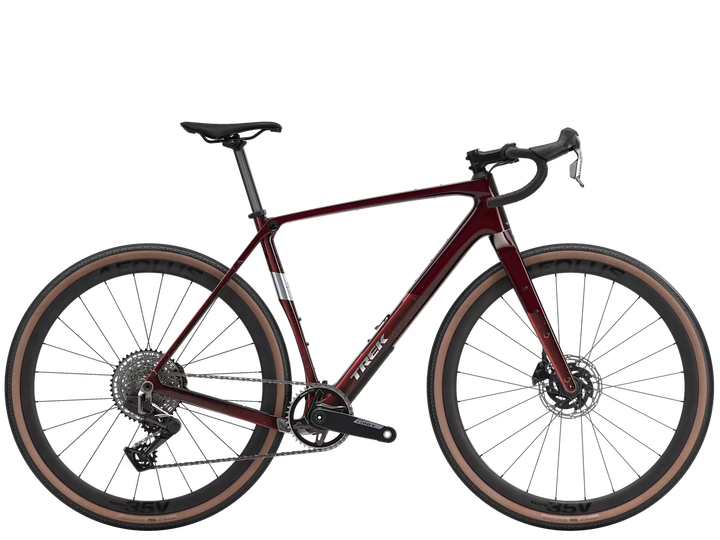

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
Weight
ML - 9.33kg / 20.57 lbs (with TLR sealant, no tubes)
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275lb).
Chain
SRAM Force E1, 12/13-speed
Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle.

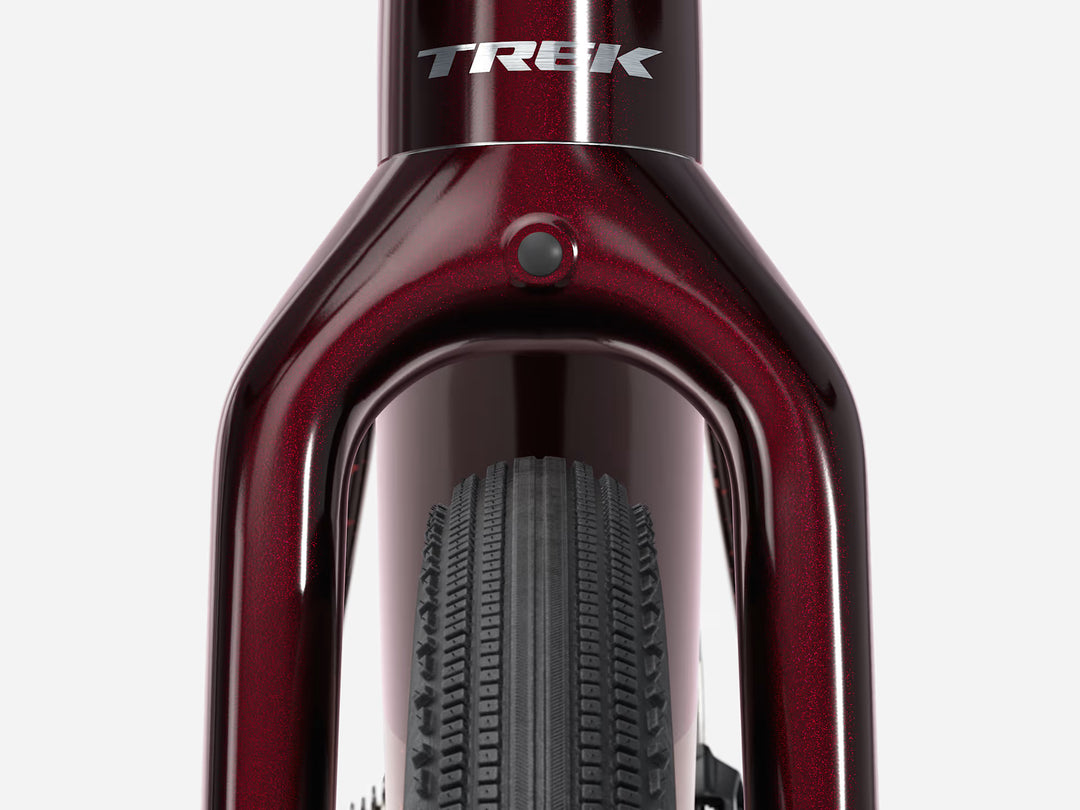

Fork
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle.

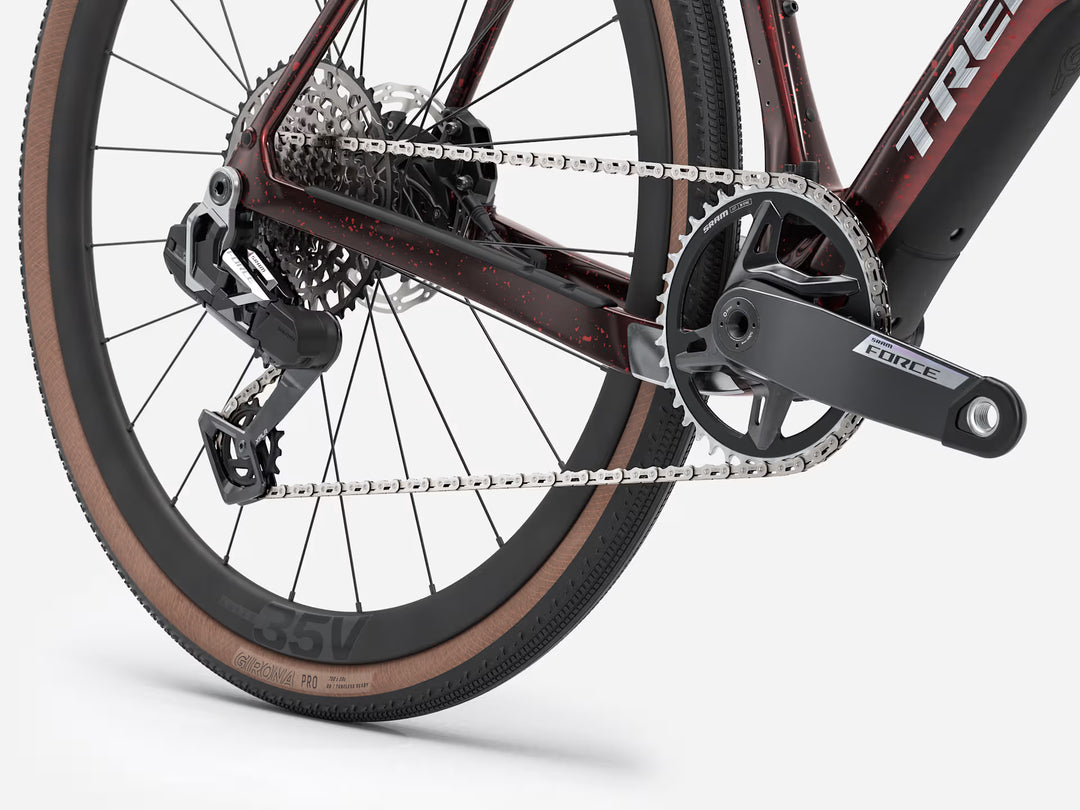

Crank
SRAM Force XPLR, 40T, DUB Wide, 165 mm length
Saddle
Verse Short Elite, hollow magnesium rails, 145 mm length
Rear Derailleur
SRAM Force XPLR AXS, 46T max cog
Bottom Bracket
SRAM DUB Wide, T47 threaded, internal bearing
Valve
Bontrager XXX TLR valve, 55 mm
Shifter
SRAM Force AXS E1
Rear Skewer
Bontrager Switch chamfered thru axle, removable lever
Rear Wheel
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle.
Seatpost
Bontrager carbon 27.2 mm, 8 mm offset, 330 mm length
Front Wheel
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Front Skewer
Bontrager Switch chamfered thru axle
Headset Part
Bontrager Headset Expander Plug and Top Cap
Stem
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

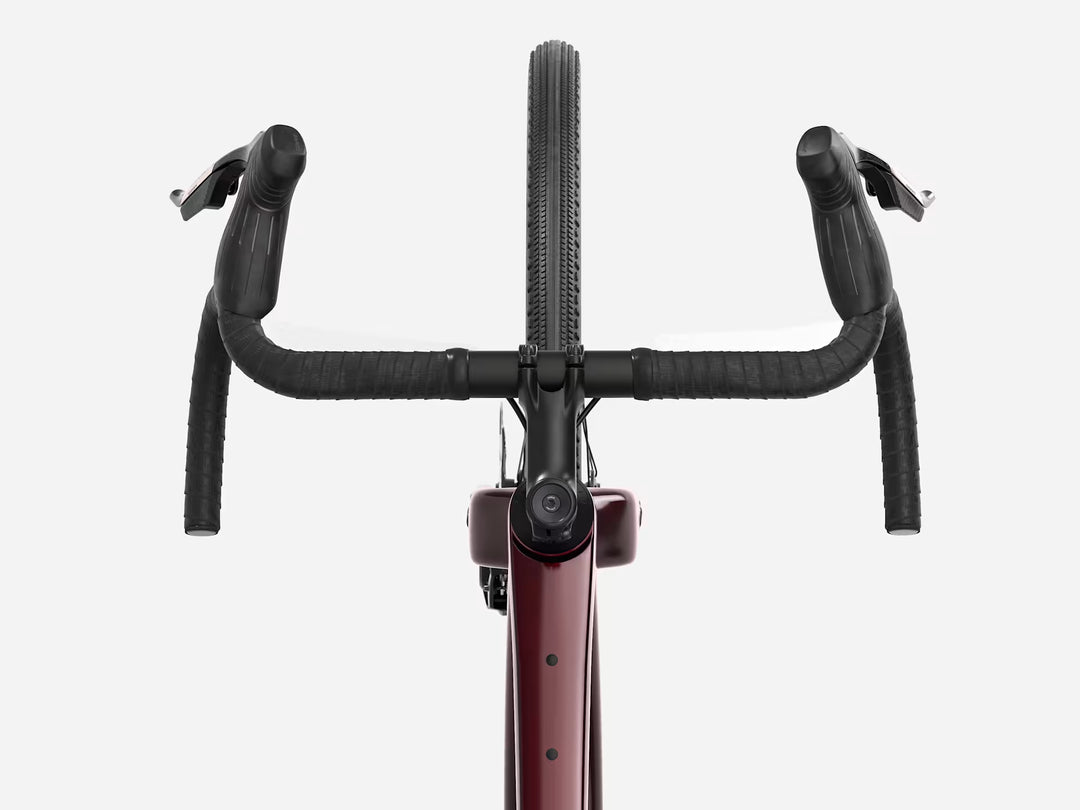

Handlebar
Bontrager Pro Gravel, 40 cm width
Cassette
SRAM Force XPLR XG-1371, 10-46, 13-speed
Battery
SRAM AXS battery pack (with charger)
Brake Rotor
SRAM Paceline X, rounded, CentreLock, 160 mm, SRAM CentreLine X, CentreLock, round edge, 160 mm
Brake
SRAM Force AXS hydraulic disc, flat mount
Bag
Bontrager BITS Internal Frame Storage Bag
Tire
Bontrager Girona Pro, Tubeless Ready, GR Puncture protection, aramid bead, 60 tpi, 700x42 mm
Tire Part
Bontrager TLR sealant, 180 ml / 6 oz
Handlebar Tape
Bontrager Supertack Perf tape
Rim Strip
Bontrager TLR
